ROTARY COLLET CHUCK WITH RUBBER FLEX COLLET
Click on product image magnification
Online inquiryJAP207-42BZI AIR COLLET CHUCK FOR HAINBUCH STYLE COLLETS
Adopts Hainbuch style clamping heads.
Built-in rotary air cylinder.
Precision pull-backd collet chuck: 0.010mm repeatability.
Chuck is with through hole for bar parts.
Double piston: large gripping force.
High resistance to coolant fluid and chips penetration.
JAP207-42BZI
JAP207-42BZI type chucks, built-in rotating air cylinder, easy to mount just need to prepare the connect adapter and the air-compressed source.
CHP206-SS42 HYDRAULIC COLLET CHUCK FOR ROTARY TABLES / INDEXING TABLES
Used on CNC machine or Grinding machine or 4 axis or 5 axis rotary table.
Adopts Hainbuch style clamping heads.
Built-in rotary hydraulic cylinder.
Precision pull-back collet chuck: 0.010mm repeatability.
Special for rotary tables / indexing tables.
Real front-mounting design allows easy installation.
Hydraulic actuated: large gripping force.
CHP206-SS42
CHP206-SS42 type collet chuck is the special chuck for the Machinery center and the 4 or 5th aixs。Buit-in hydraulic cylinder and front mounting, no need the extra cylinder or draw tube 。Matched with the DIN SpannStar precise collet
Spec/Model:
3H-M10(Front)
3H-M10(Rear)
5572kgf@7kg/cm²
(12258lbf@100psi)
5669kgf@30kg/cm²
(12472lbf@428psi)
Model
JAP207-42BZI
CHP206-SS42
Air/Hydraulic
Air
Hydraulic
A
197（7.75〞）
166(6.54〞)
B
155（6.10〞）
130(5.12〞)
C
42（1.65〞）
42(1.65〞)
D
4.5（0.18〞）
4.5(0.18〞)
E
146（5.75〞）
100(3.94〞)
F
69（2.72〞）
52(2.05〞)
G
146（5.75〞）
135(5.31〞)
H(P.C.D)
172（6.77〞）
147(5.79〞)
Mounting bolts
4H-M10(Front)
Working collet
SZM
SS42 COLLET
SZM
SS42 COLLET
Max RPM
2500
100
Air Pressure
3-7kg/cm²(40-100psi)
10-30kg/cm²(143-500psi)
Max clamping dia
42mm(1.65〞)
42mm(1.65〞)
Piston Area
256cm²(40.0in²)
66cm²(10.2in²)
Clamping force
N.W.
20kgs(44lbs)
10kgs(22lbs)
ROTARY CYLINDER BUILT-IN TYPE COLLET CHUCK APPLICATION

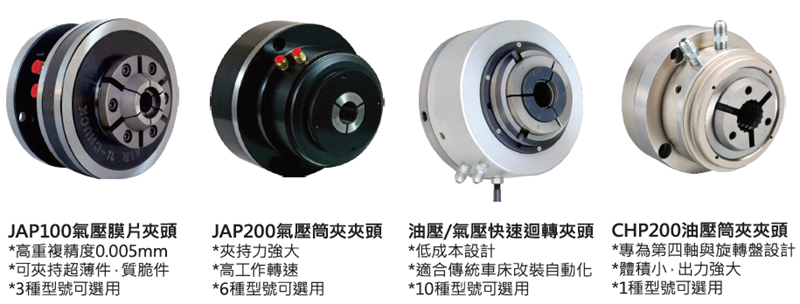

Built-in cylinder collet series:
Subject to technology changes without prior information
Non-standard requirements can be made
