INTERCHANGEABLE HEAVY DUTY STRONG LIVE CENTER
Click on product image magnification
Online inquiry
类型:替换式系列
Type: Interchangeble live center
负荷:重
Duty: Heavy
适 用:CNC车床、高速车床及其他机床。
Application CNC lathe and high speed lathe or other lathe.
用 途:适用高推力强力车削加工。
Working Usage Applicable for ordinary strong turning process.

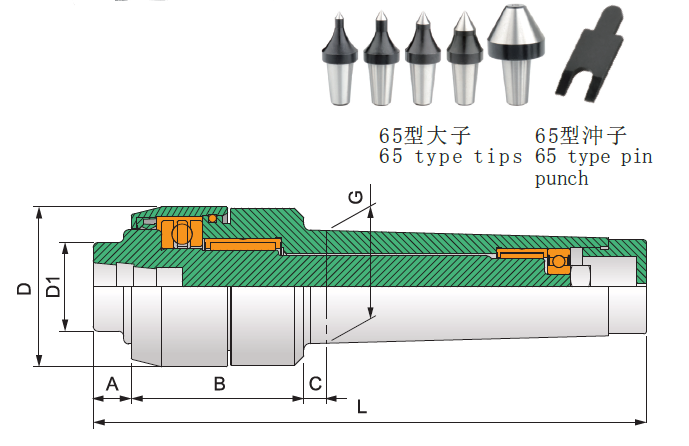

结 构:止推轴承加大推力设计,载重前后採用针状轴承设计製成。
Structure Combination of thrust bearing with enhanced axial load design and needle bearing at front and rear place for radial load.
选 配:65型大子、65型沖子
Accessories 65 type Tips and 65 type punch.
精准度:0.005以内
TIR Less than 0.005mm
检测顶尖的尖部跳动精度时,必须在顶尖顶紧工件的状态下进行打表。
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
规格 / Specification 单位/ UNIT:mm
型式/外表尺寸 Model/Spec |
A | B | C | D | D1 | G | L |
轴承最高转数 Max.RPM |
轴承径向力 (载重) Max. radial load |
轴承轴向力 (推力) Max. axial thrust force |
---|---|---|---|---|---|---|---|---|---|---|
TSC-665-3 | 12 | 69 | 8 | 58 | 34.8 | 23.825(MT3) | 156 | 3,500rpm | 1,960kg | 1,750kg |
TSC-665-4 | 15 | 83 | 9 | 63 | 34.8 | 31.267(MT4) | 191 | 3,500rpm | 2,800kg | 2,150kg |
TSC-665-5 |
15 | 83 | 9 | 63 | 34.8 | 44.399(MT5) | 218 | 3,500rpm | 3,080kg | 2,150kg |
