TSC-265 INTERCHANGEABLE HEAVY DUTY HIGH PERFORMANCE LIVE CENTER

INTERCHANGEABLE HEAVY DUTY HIGH PERFORMANCE LIVE CENTER

Click on product image magnification

Download

Online inquiry

Products in detail

Type: Interchangeble live center
Duty: Heavy

Application CNC lathe and high speed lathe or other lathe.

Working Usage Applicable for ordinary strong turning process.

Structure Combination of double row ball precise bearing and thrust bearing and needle bearing. With the design of three supporting points.

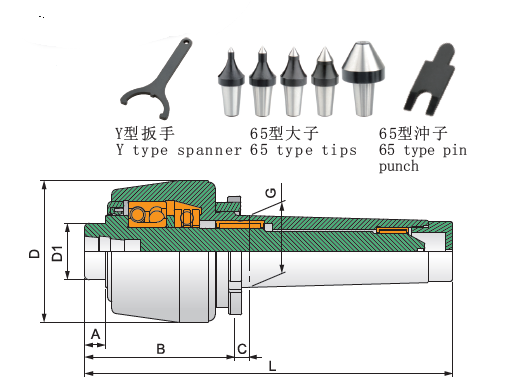

Accessories Y spanner and 65 type Tips and 65 type punch.

TIR Less than 0.005mm


Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.


2024澳门原料网大全

 Specification  UNIT：mm

Model/Spec

A B C D D1 G L

Max.RPM

Max. radial load

Max. axial thrust force

TSC-265-3A 15 87 8 58 34.8 23.825（MT3) 174 6,000rpm 1,450kg 1,800kg
TSC-265-4A 15 87 9 65 34.8 31.267（MT4) 195 6,000rpm 2,250kg 2,700kg
TSC-265-5A 15 93 9 75 34.8 44.399（MT5) 228 6,000rpm 3,620kg 3,000kg


Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed

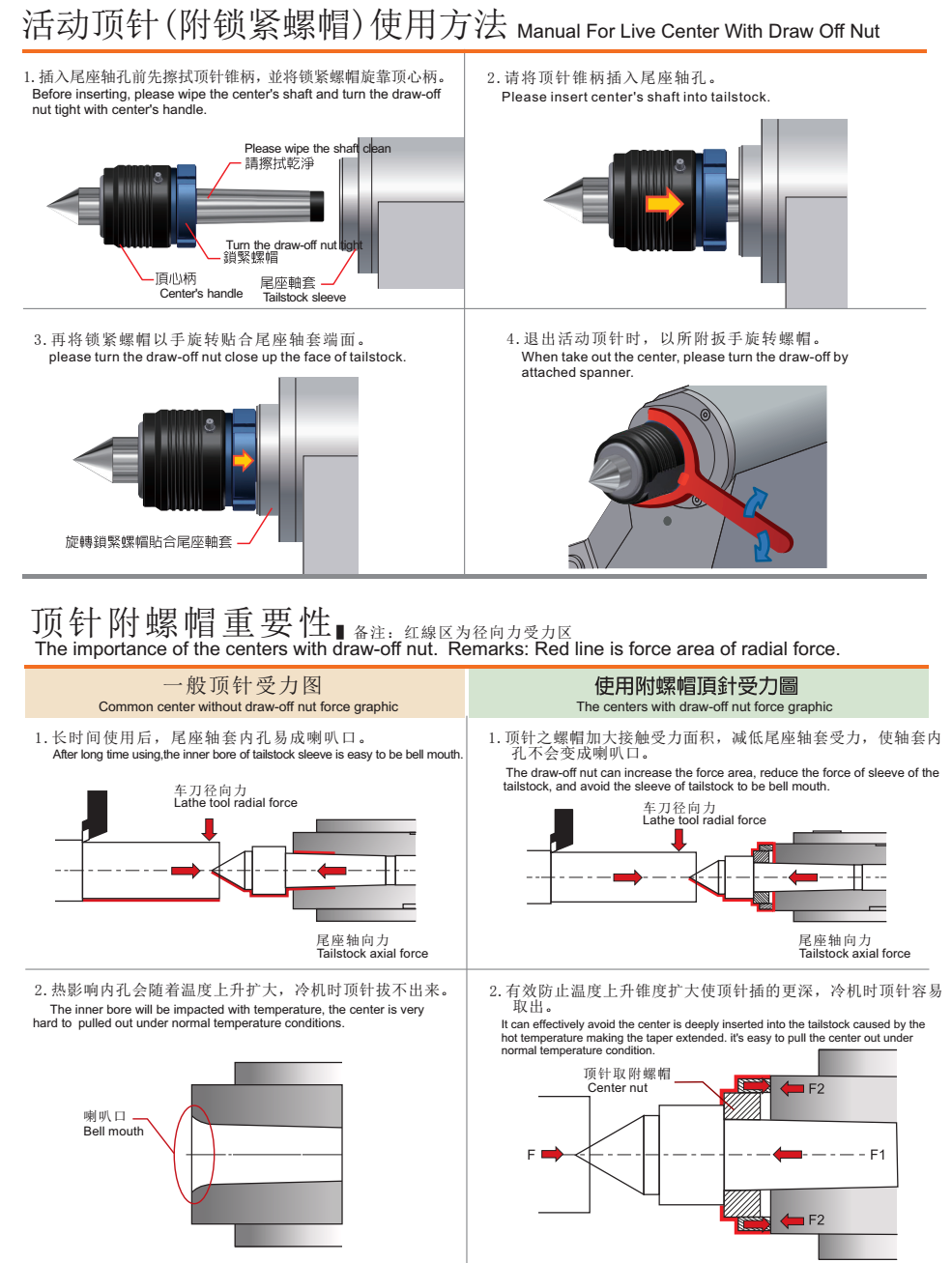

2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
