SINGLE JAW NON-THROUGH HOLE EXTRA LONG STROKE POWER CHUCK
Click on product image magnification
Online inquiryBrand：NTH
Non through hole crank type single jaw chuck, very long jaw stroke
Suitable for clamping the jig.
High rigidity construction and high clamping accuracy.
Size Unit: mm
| Spec/ Model |
Plunger stroke mm |
Jaw stroke Dia. mm |
Max chucking Dia. mm |
Min chucking Dia. mm |
Max.D.B.Pull KN(kgf) |
Max clamping force KN(kgf) |
|---|---|---|---|---|---|---|
| 1T-06 A5 | 20 | 16 | 165 | 17 | 12.3(1250) | 27.3(2780) |
| 1T-08 A5 | 25 | 20 | 210 | 20 | 15.7(1600) | 37.2(3800) |
| 1T-08 A6 | 25 | 20 | 215 | 20 | 15.7(1600) | 37.2(3800) |
| 1T-10 A6 | 30 | 24 | 254 | 25 | 21.6(2200) | 48.5(4950) |
| 1T-10 A8 | 30 | 24 | 254 | 25 | 21.6(2200) | 48.5(4950) |
| Spec/Model | Max RPM |
Inertia moment kg*m2 |
Weight kg |
Weight(Ad.) kg |
Matched cylinders |
Max Pressure Mpa(kgf) |
|---|---|---|---|---|---|---|
| 1T-06 A5 | 3800 | 0.05 | 12.8 | 14.6 | S-100R | 1.7(17.5) |
| 1T-08 A5 | 3000 | 0.15 | 24.6 | 27.4 | S-125R | 1.4(14.3) |
| 1T-08 A6 | 3000 | 0.15 | 24.6 | 25.6 | S-125R | 1.4(14.3) |
| 1T-10 A6 | 2400 | 0.28 | 34 | 41 | S-125R | 1.9(19.5) |
| 1T-10 A8 | 2400 | 0.28 | 34 | 39.5 | S-125R | 1.9(19.5) |

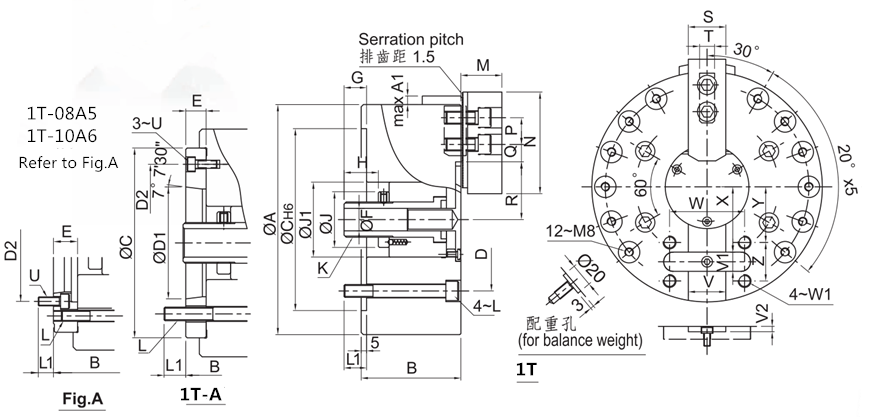

| Spec/Model | A | A1 | B | B(ad.) | C | D | D1 | D2 | E | F | G max | G min | H | J | J1 | K max | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1T-06 A5 | 165 | 9.5 | 80 | 90 | 140 | 104.8 | 82.56 | 116 | 15 | 21 | 37 | 17 | 25 | 46 | 54 | M30×1.5 | 16 | 16 |
| 1T-08 A5 | 210 | 8 | 93 | 111 | 170 | 133.4 | 106.38 | 104.8 | 23 | 21 | 46 | 21 | 32 | 52 | 70 | M33×1.5 | 21 | 19 |
| 1T-08 A6 | 210 | 8 | 93 | 105 | 170 | 133.4 | 106.38 | 150 | 17 | 21 | 46 | 21 | 32 | 52 | 70 | M33×1.5 | 21 | 20 |
| 1T-10 A6 | 254 | 13.5 | 108 | 128 | 220 | 171.4 | 139.72 | 133.4 | 25 | 34 | 47 | 17 | 30 | 62 | 90 | M45×1.5 | 25 | 20 |
| 1T-10 A8 | 254 | 13.5 | 108 | 121 | 220 | 171.4 | 139.72 | 190 | 18 | 34 | 47 | 17 | 30 | 62 | 90 | M45×1.5 | 25 | 27 |
| Spec/Model | M | N | P | Q max | Q min | R max | R min | S | T | U | V(H6) | V1(9) | V2 | W | W1 | X | Y | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1T-06 A5 | 37 | 73 | 20 | 19.75 | 7.75 | 46 | 30 | 31 | 12 | M6 | 30 | 15 | 4.5 | 64 | M10 | 45 | 36 | 30 |
| 1T-08 A5 | 38 | 95 | 25 | 25.25 | 10.25 | 54 | 34 | 35 | 14 | M6 | 35 | 18 | 4.5 | 70 | M12 | 61 | 52 | 36 |
| 1T-08 A6 | 38 | 95 | 25 | 25.25 | 10.25 | 54 | 34 | 35 | 14 | M6 | 35 | 18 | 4.5 | 70 | M12 | 61 | 52 | 36 |
| 1T-10 A6 | 43 | 110 | 30 | 33.75 | 11.25 | 67 | 43 | 40 | 16 | M8 | 40 | 20 | 5 | 90 | M12 | 71 | 58.5 | 45 |
| 1T-10 A8 | 43 | 110 | 30 | 33.75 | 11.25 | 67 | 43 | 40 | 16 | M8 | 40 | 20 | 5 | 90 | M12 | 71 | 58.5 | 45 |
Subject to technology changes without prior information
Non-standard requirements can be made
