5-JAW THROUGH HOLE POWER CHUCK
Click on product image magnification
Online inquiryBrand：NTH
Multiple contact points clamping, it can avoid the deformation issue during clamping process for thin wall pipe or ring like workpiece.
Size Unit:mm
Spec/Model
Plunger stroke
Jaw stroke (Dia)
Max clamping dia
Min clamping dia
Max.D.B.Pull
KN(kgf)
BW-06A5
12
5.5
168
15
17.1(2200)
BW-08A6
16
7.4
210
13
34.3(3500)
BW-10A8
21
8.9
254
46
34.3(3000)
(mm)
(mm)
(mm)
(mm)
Spec /Model
Max clamping force
Max RPM
Weight
Matched cylinders
Max.pressure
BW-06A5
35.8(5500)
5000
15.5
H-1246/HK-1246
2.74(20)
BW-08A6
85.8(8750)
5000
25.5
H-1552/HK-1552
2.8(28)
BW-10A8
85.8(7000)
2500
43.5
H-1875/HK-1875
2.1(21)
KN(kgf)
kg
Mpa(kgf/cm2)

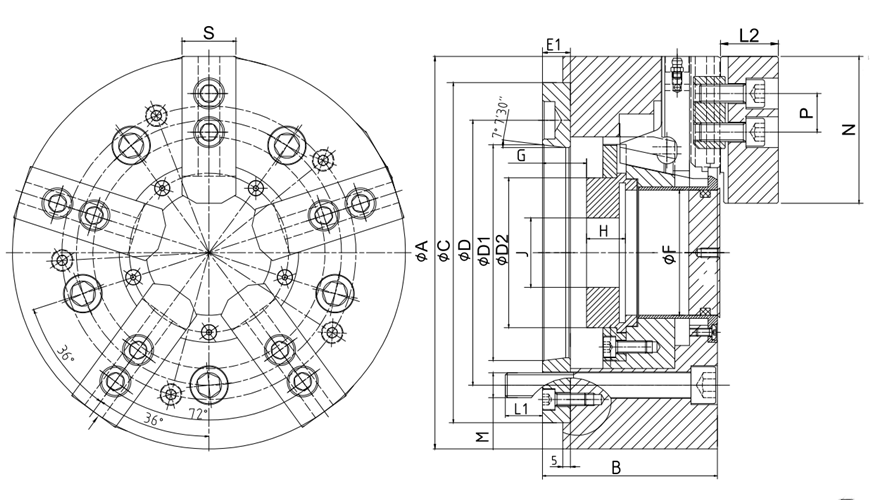

Spec/Model
A
B
C（H6）
D
D1
E1
G max
G min
H
BW-06A5
169
97
140
104.8
82.563
21
26
14
17.5
BW-08A6
210
103
170
133.4
106.375
17
31.5
15.5
20
BW-10A8
254
120
220
171.4
139.719
25
28.5
7.5
25
Spec /Model
F
L1
L2
J
D2
M
N
P
S
BW-06A5
45
15.5
37
M55*2.0
60
10
73
20
31
BW-08A6
52
19
37
M60*2.0
66
12
73
20
31
BW-10A8
81
24
43
M85*2.0
94
16
110
30
40
Subject to technology changes without prior information
Non-standard requirements can be made
Next：1T SINGLE JAW POWER CHUCK
Previous：BS 6-JAW THROUGH HOLE POWER CHUCK
