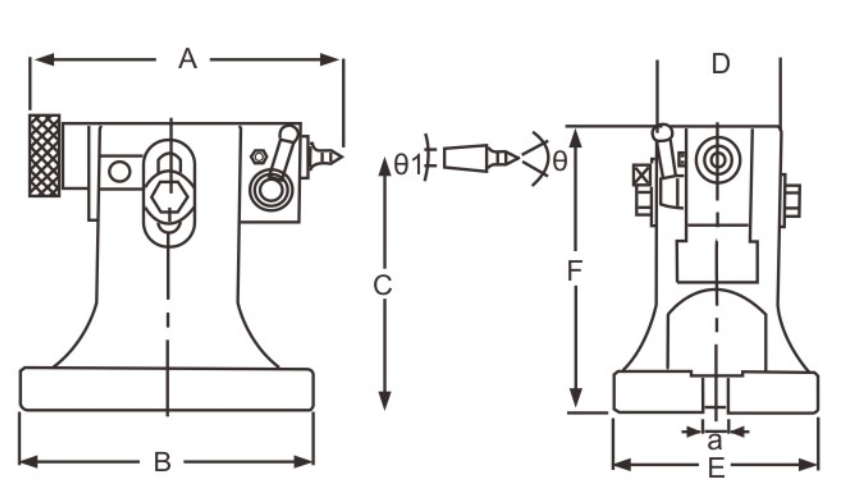

Unit:mm
Model | A | B | HIGHEST | C | LOWEST | D | E | F | a | θ1 | θ | N.W. Kg |
---|---|---|---|---|---|---|---|---|---|---|---|---|
TS-6" | 192 | 180 | 170 | 155 | 140 | 76 | 126 | 175 | 16 | 10˚ | 60˚ | 9 |
TS-8" | 192 | 180 | 195 | 180 | 165 | 76 | 126 | 200 | 16 | 10˚ | 60˚ | 10 |
