SOFT/HARDENED/PIE JAWS

WEDGE TYPE POWER CHUCK JAWS FOR K51T,K51,K51F CHUCKS

WEDGE TYPE POWER CHUCK JAWS FOR K51T,K51,K51F CHUCKS

Click on product image magnification

Download

Online inquiry

Products in detail

Brand:OMATEI
Selection Guidance
1, Chuck brand and model name

2, Workpiece size and the gripping height


Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.


2024澳门原料网大全

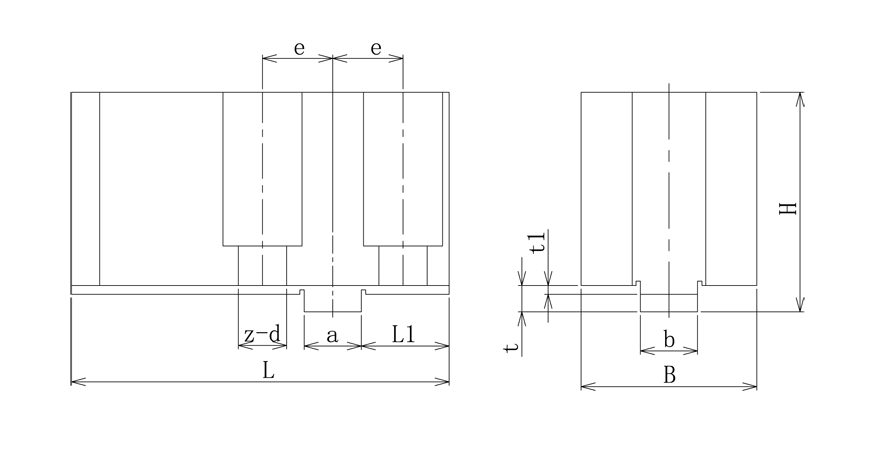

Size

L L1 B H a b e t t1 z-d
160 70 18 35 42 11 11 14 5 1.5 2-9
200 86 20 40 50 13 13 16 6 2 2-11
250 105 25 45 58 15 15 20 7 2.5 2-13
320 130 28 50 69 18 18 22.5 8 3 2-15
400 160 40 50 80 20 20 30 9 3.5 2-17
500 190 56 55 85 22 22 39 9 3.5 2-19
630 235 76 60 100 24 24 50 10 4 2-22
Subject to technical changes
