HARD JAWS FOR HYDRAULIC CHUCK
Click on product image magnification
Online inquiryBrand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
|
SPEC MODEL |
H-1 |
H-2 |
H-3 |
H-4 |
H-5 |
H-6 |
H-7 |
H-8 |
H-9 |
H-10 |
Serration Pitch |
Gross Weight(kg) |
Ref |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HJ-05 |
53 |
23 |
28 |
10 |
4 |
30.5 |
14 |
22.5 |
10 |
M8 |
1.5×60° |
0.4 |
Fig2 |
|
HJ-06 |
67 |
31 |
36 |
12 |
5 |
39 |
20 |
28 |
12 |
M10 |
1.5×60° |
0.95 |
Fig2 |
|
HJ-06-3 |
67 |
31 | 49 | 12 | 5 | 18 | 20 | 19 | 12 | M10 |
1.5×60° |
1 |
Fig1 |
|
HJ-08 |
86 |
35 |
51 |
14 |
5 |
31 |
25 |
18 |
12 |
M12 |
1.5×60° |
1.95 |
Fig1 |
|
HJ-10 |
100 |
40 |
54 |
16 |
5 |
43 |
30 |
17 |
14 |
M12 |
1.5×60° |
2.85 |
Fig1 |
|
HJ-12 |
103 |
50 |
52 |
21(18) |
5 |
69.5 |
30 |
43.5 |
20 |
M16(M14) |
1.5×60° |
3.9 |
Fig2 |
|
HJ-12-3 |
103 | 50 | 66 | 21(18) | 5 | 36 | 30 | 32 | 15 |
M16(M14) |
1.5×60° |
4.2 |
Fig1 |
|
HJ-1518 |
149 |
62 |
86 |
22(25.5) |
8(5) |
55 |
43 |
38 |
20 |
M20 |
1.5×60° |
9.45 |
Fig1 |
|
HJ-15-1 |
149 |
62 |
86 |
26 |
8 |
55 |
43 |
38 |
20 |
M20 |
3.0×60° |
9.45 |
Fig1 |
|
HJ-2421 |
159.5 |
80 |
90 |
25 |
9 |
104.5 |
50 |
55 |
40 |
M20 |
3.0×60° |
14.3 |
Fig2 |
|
HJ-32 |
159.5 |
80 |
90 |
25 |
9 |
104.5 |
50 |
55 |
40 |
M20 |
3.0×60° |
14.3 |
Fig2 |
|
HJ-40(50) |
223 |
85 |
117 |
30 |
7 |
76.2 |
38.1 |
140 |
83 |
M24 |
|
|

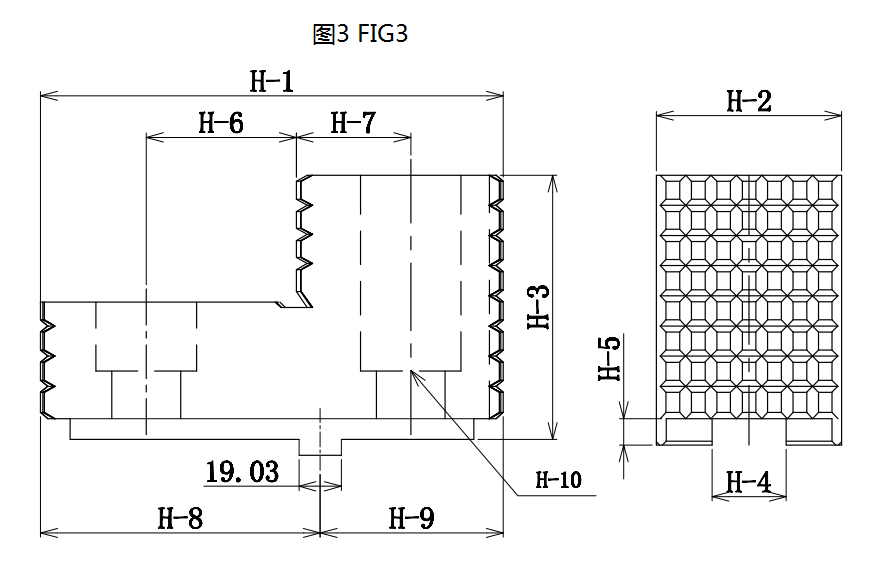

Fig3 |
|
HJ-63(79) |
223 |
110 |
117 |
30 |
7 |
76.2 |
38.1 |
140 |
83 |
M24 |
|
|
Fig3 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
