F361 INTERCHANGEABLE MEDIUM DUTY SMALL DIAMETER LIVE CENTER

INTERCHANGEABLE MEDIUM DUTY SMALL DIAMETER LIVE CENTER

Click on product image magnification

Download

Online inquiry

Products in detail

Type: Interchangeble live center
Duty: Medium

Application  CNC lathe and high speed lathe or other lathe machine.

Working Usage  Applicable for small dia. and the length less than 300mm medium turning process.

Structure Combination of thrust bearing and needle bearing at  the design of double supporting point.front and rear place, and with the design of double supporting point.

Accessories  61 type Tips and 61 type pin punch.

TIR Less than 0.005mm

Notes：

Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.


2024澳门原料网大全

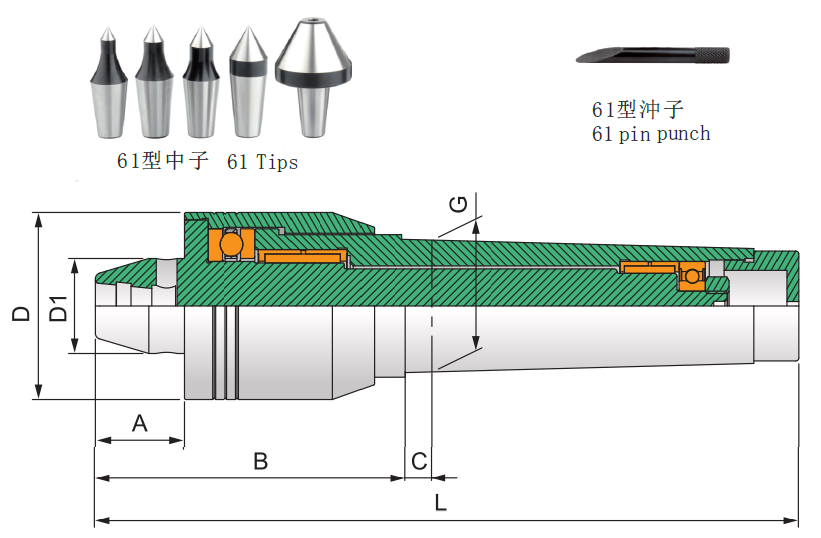

 Specification   UNIT：mm

Model/Spec

A B C D D1 G L

Max.RPM

Max. radial load

Max. axial thrust force

F361-3 30 85 8 41 32 23.825（MT3) 172 3,500rpm 1,200kg 1,500kg
F361-4 30 89 9 48 32 31.267（MT4) 197 3,500rpm 1,400kg 1,900kg
F361-5 30 110 9 63 32 44.399（MT5) 245 3,000rpm 2,200kg 2,500kg

Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
