3 Jaw Compensation with center Power chuck
Click on product image magnification
Online inquiryBrand：NTH

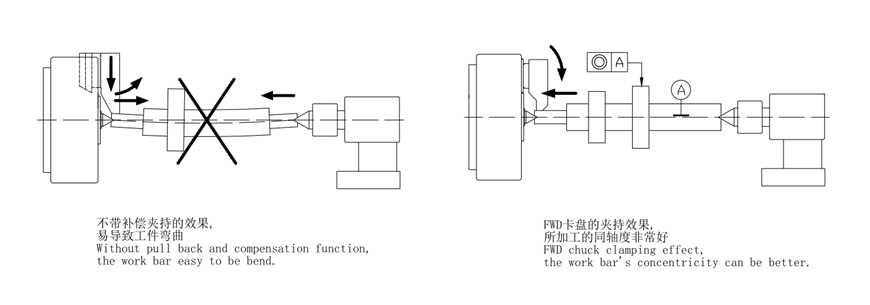

1. It's suitable for shaft machining, the chuck have the function of compensation clamping and pulling back, the compensation size is 5mm.2. The tailstock support the shaft, after compensation clamping, the chuck pull the shaft back to center, better concentricity can be made.
UNIT: mm
|
Spec/ Model |
Plunger stroke |
Jaw stroke (Dia) |
Max clamping Dia |
Min clamping Dia |
Max.D.B.Pull KN(kgf) |
Max clamping force |
|---|---|---|---|---|---|---|
|
FWD-06A5 |
16 |
13 |
35 |
6 |
14.7(1500) |
25.0(2550) |
|
FWD-08A6 |
20 |
18 |
65 |
16 |
19.6(2000) |
34.3(3500) |
Spec/Model
Compensation
Max RPM
Inertia
Weight
Matched cylinders
Max.pressure
FWD-06A5
5
3500
0.5
13
SNK-100
2.1(21)
FWD-08A6
6
3000
0.5
22
SNK-100
2.8(28)
(mm)
kg*m2
kg
Mpa(kgf/cm2)
|
Spec / Model |
A |
B |
C(H6) |
D |
D1 |
D2 |
E |
G |
|---|---|---|---|---|---|---|---|---|
|
FWD-06A5 |
168 |
116 |
140 |
104.8 |
82.56 |
24 |
15 |
4--20 |
|
FWD-08A6 |
210 |
127 |
170 |
133.4 |
106.38 |
32 |
17 |
9--29 |
|
Spec/Model |
H |
J |
L |
M |
N |
P |
T |
|---|---|---|---|---|---|---|---|
|
FWD-06A5 |
38 |
50 |
52 |
M10x120 |
55 |
14 |
34 |
|
FWD-08A6 |
38 |
58 |
61 |
M12x125 |
67 |
20 |
41.5 |
Subject to technology changes without prior information
Non-standard requirements can be made
