NTH HYDRAULIC CHUCKS

IAH AUTO-INDEXING POWER CHUCK

AUTO-INDEXING CHUCK

Click on product image magnification

Download

Online inquiry

Products in detail

Brand：NTH

Machining multiple surfaces in a single clamping
On-the-fly indexing
High accurate,durable indexing system
Index positions 4*90° or 8*45°

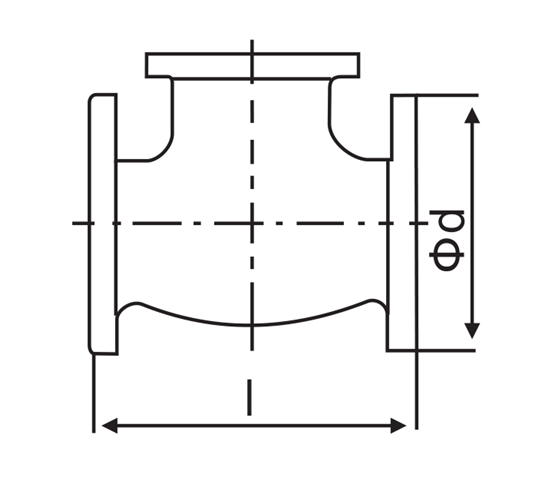

Model Max.Workpiece Size
Фd( mm) 		Max.Workpiece Size
I (mm)
IAH-225 60 100
IAH-250 65 160
IAH-275 80 220
IAH-315 100 230
IAH-350 135 240
IAH-400 170 260
IAH-500 220 310
IAH-670 300 400

2024澳门原料网大全


2024澳门原料网大全

Bracketed dimensions refer to models IAH-400 and larger.

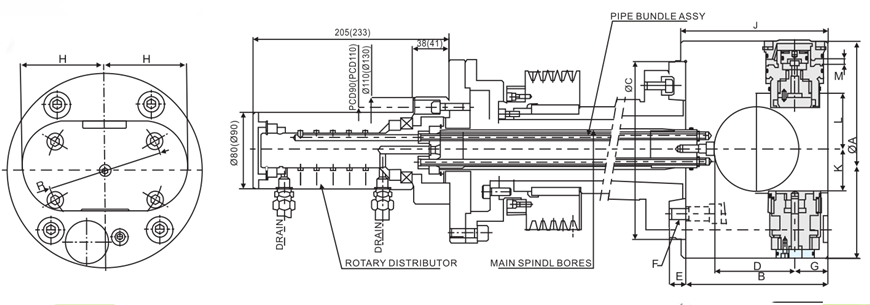

Spec/ Model ØA B ØC(h7) D E F G H J K L M ØR
IAH-225 225 149 185 84 25 M12 35 95 154 46 58 11.5 133.4
IAH-250 250 185 210 113 25 M12 40 106 190 46 55 20 133.4
IAH-280 280 208 210 125 25 M16 48 125 213 57 67 20.5 171.4
IAH-315 315 227 235 136 25 M16 50 136 232 70 85 22 171.4
IAH-350 350 235 290 148 30 M20 50 145 240 84 102 23 235
IAH-400 400 253 290 160 30 M20 60 165 259 100 114 30 235
IAH-500 500 301 380 200 35 M20,M24 68 205 308 133 157 35 235
IAH-670 670 465 380 286 40 M24 90 275 470 176 214 40 330.2


Spec/Model Max. Clamping Force
kgf 		Spindle Bore
mm 		Max RPM Weight
kg 		Inertia moment
kg*m2 		Max.Workpiece Size
S mm 		Max.Workpiece Size
T mm
IAH-225 1270 over45 2800 29 0.9 60 100
IAH-250 1730 over45 2400 44 1.7 65 160
IAH-280 2550 over45 2000 56 2.8 80 220
IAH-315 2550 over45 1800 75 5 100 230
IAH-350 2550 over55 1800 100 8 135 240
IAH-400 3530 over55 1200 145 15 170 260
IAH-500 4670 over55 900 230 25.4 220 310
IAH-670 5890 over55 600 540 32.5 300 400
Subject to technology changes without prior information
Non-standard requirements can be made

Next：CW 3 JAW COMPENSATION SWING LOCK POWER CHUCK

Previous：FQ QUICK JAW CHANGE POWER CHUCK
