SI 3 JAW COMBINATION MANUAL CHUCK
Click on product image magnification
Online inquirySI Serise Introduction:
It's suitable for the lathe machine, rotary table or CNC machine center and so on, it can work for regular or irregular workpiece without changingthe chuck.
lt has the gripping function of both scroll chuck and independentmovement chuck.
Back mounting hole design, and front mounting is achievable.

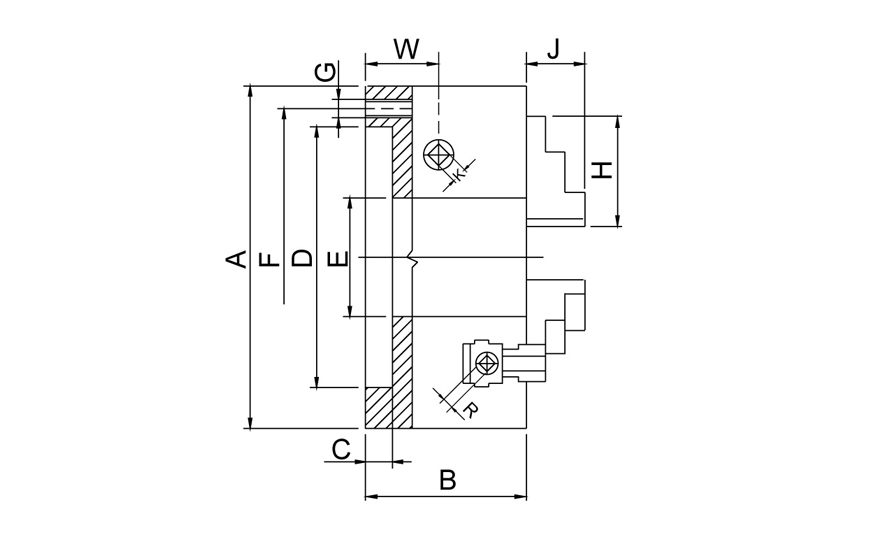

Size Unit:mm
|
MODEL/SPEC |
A |
B |
C |
D |
E |
F |
G |
|---|---|---|---|---|---|---|---|
|
SI-160 |
160 |
82 |
4 |
125 |
42 |
140 |
3-M10 |
|
SI-200 |
200 |
86 |
4 |
160 |
55 |
176 |
3-M10 |
|
SI-250 |
250 |
101 |
5 |
200 |
76 |
224 |
3-M12 |
|
SI-315 |
315 |
118 |
5 |
260 |
103 |
286 |
3-M16 |
|
SI-400 |
400 | 124 | 6 | 330 | 136 | 362 |
3-M16 |
|
SI-500 |
500 | 145 | 6 | 420 | 190 | 458 |
3-M16 |
|
SI-630 |
630 | 160 | 7 | 545 | 252 | 586 |
3-M16 |
|
SI-800 |
800 | 200 | 10 | 710 | 267 | 760 |
3-M20 |
|
SI-1000 |
1000 | 236 | 10 | 910 | 460 | 950 |
3-M24 |
|
SI-1250 |
1250 | 241 | 10 | 1000 | 560 | 1100 |
3-M30 |
|
MODEL/SPEC |
H |
J |
K |
R |
W |
RPM MAX |
|---|---|---|---|---|---|---|
|
SI-160 |
69 |
28.5 |
11 |
6 |
22.3 |
3200 |
|
SI-200 |
85 |
31 |
11 |
8 |
26 |
3000 |
|
SI-250 |
91 |
33 |
14 |
8 |
29.3 |
2500 |
|
SI-315 |
125 |
42 |
14 |
10 |
32 |
2000 |
|
SI-400 |
145 |
58 |
17 |
10 |
36 |
1500 |
|
SI-500 |
180 | 61 | 19 | 12 | 43.5 | 1000 |
|
SI-630 |
225 | 72 | 19 | 12 | 48.5 | 750 |
|
SI-800 |
245 | 67 | 19 | 17 | 57.5 | 600 |
|
SI-1000 |
245 | 88 | 24 | 19 | 67 | 380 |
|
SI-1250 |
245 | 88 | 24 | 19 | 72 | 200 |
Subject to technology changes without prior information
Non-standard requirements can be made
